Guangzhou Aogejian Medical Instrument Co., Ltd.

Pocket Fetal Doppler(AG-21B)


Price
0.00
comment:0
Detail
Review(0)
Spec Palm Color white
Brand AOGEJIAN Model AG-21B

Product Features

1,Pocket, large LCD to displayfoetal heartbeat rate.

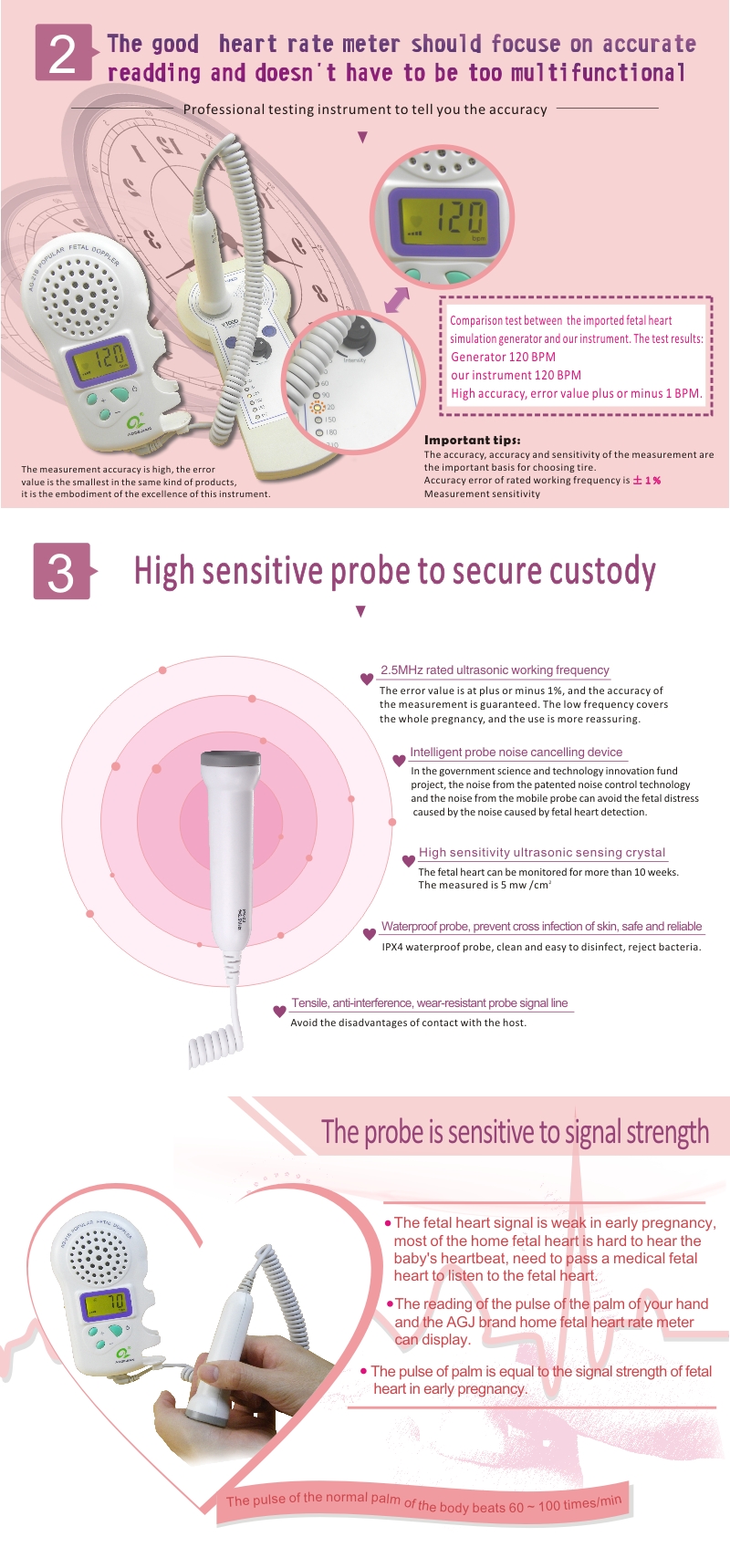

2,2.5MHZ probe, a waterproofingand highly anti-jamming device, easily sanitized and cleaned, safe andreliable.

3, Streamline shape suitable forthe ergonomical, easily pick-and-place, beautiful and steady.

4,Unique de-noising function,adopting advanced technics to ensure the perfect Doppler output effect,avoiding successfully such disadvantages of the like product as low sound,large noise and low sensitivity.

5,Be able to detect clearly thefoetal heart beat from the very beginning, and display the   rateinstantly.

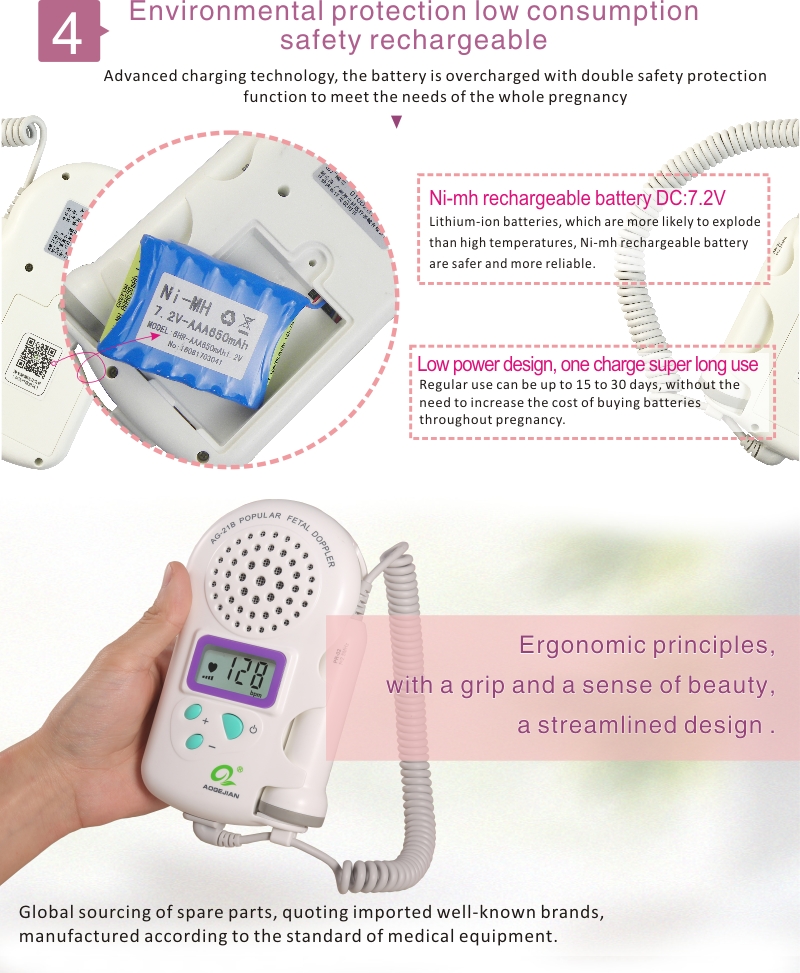

6,Energy saving, low voltagealarming, outstanding charging technology, function security to batteryover-recharged/over-discharged, switching power adapter with CE certificationfor medical equipment to ensure the safe of recharging.

7,Function of alarmingautomatically when the foetal heartbeat rate oversteps the top and bottomlimitation.

Technical parameters

charger

(Switching power supply)

Input: 100-240V~, 50/60Hz, 500mA

Output: 12V , 1.0A

Battery

1.2Vx6 Ni-MH(AAA) 650mAh

Input power

7.2VA (Charging :12VA)

Rechargeable battery

Continuous work time

about eight hours

Equipment type

Class equipment type: BF

Ultrasonic work frequency

2.5MHz ±2%

Ultrasonic output power

10mW/ cm2 maximum The measured is 5mW/cm2

FHR measurement range

50 bpm~240bpm,error±2bpm

Audio output

0.7W

Speaker

Diameter 57mm

External dimension

89mm×168mm×36mm

Weight

0.38kg

Overall sensitivity at the distance 200mm from the face of the probe

≥92dB
